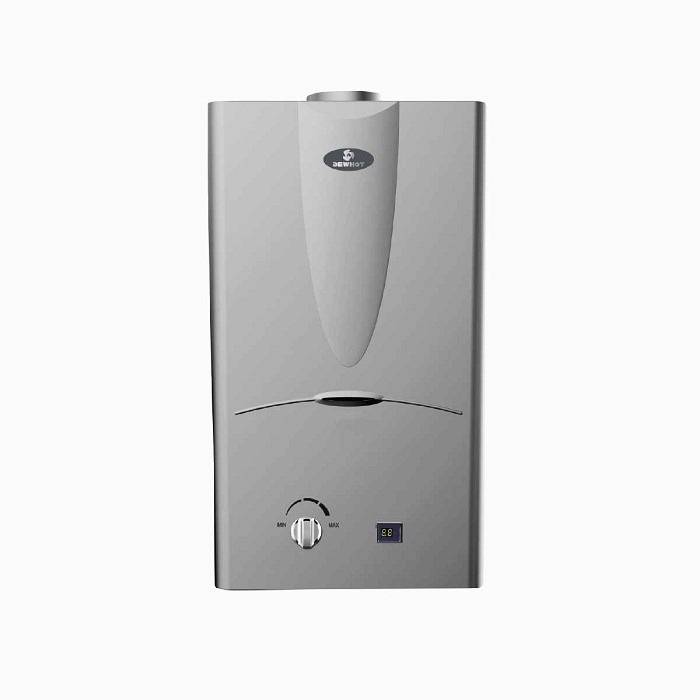

Description
FEATURES:
Requires no electricity – flame ignition and geyser functions are battery operated (optional solar battery available).
84% energy efficiency Geyser can function on low and high-water pressure.
Ventilation is required.
Compatible with mixer taps.
Flame failure safety device (FFD).
LCD temperature display.
Pressure Relief Protection (to function effectively, the valve must be set to your water pressure).
SPECIFICATIONS:
Max gas pressure 2.8 kPa
Max gas consumption 1.6 Kg / hour
Rated Input 24 Kw
Water pressure 20-500 kPa
Min water output 3L / min
Max water output 12L / min
A GUIDE LINE OF SHOWERING TEMPERATURES:
Body temperature: 35-37°C.
Summer time comfortable showering temperatures: 35-38°C.
Warm shower in winter: 39°C.
Hot showering temperature in winter 42°C (most preferred showering temperature).
Very hot showering temperature in winter: 44°C.
For a bath temperature in winter: 48-50°C.
DIMENSIONS:
Unit weight 9.5 Kg
Packaged weight 10.9 Kg
Unit size 670 x 350 x 205 mm
Packaged size 730 x 425 x 245 mm
Gas Type LPG
OPTIONAL EXTRAS:
FLUE:
The gas geyser should be installed with a 110mm solid or flexible flue and the appliance should be close to the flue
termination to avoid unnecessary elbows and excessive flue length. A flue cowl should be used if installed outdoors to prevent rain from entering the geyser.
GAS GEYSER SIZES DEPEND ON THE FLOW RATE PER MINUTE. FLOW RATE, OR FLOW DEMAND, IS THE TOTAL NUMBER OF LITERS PER MINUTE THAT YOUR TAPS OR OUTLETS USE WHEN THEY’RE TURNED ON. YOU CAN CALCULATE YOUR FLOW RATE USING THE SIMPLE BUCKET TEST.
CALCULATE YOUR FLOW RATE BY DOING THE BUCKET TEST!!
- Place a bucket under your largest cold-water tap.
- Turn to full and run for 30 seconds.
- Measure how much water is in the bucket.
- Multiply that measurement by 2 to find your flow rate in litres per minute.
- For multiple use models repeat this process for each tap but make sure that all your taps are running at the same time.
- Add all the flow rates together for your overall flow demand.
