Description
KEY POINTS:
⚡ 5G Speed Maxima: Reaches maximum mobile download speeds up to 4.67 Gbps and upload speeds up to 1.25 Gbps.
⚡ 4G Fallback Support: Fully backward compatible with LTE Cat19 networks, supporting fallback speeds up to 1.6 Gbps.
⚡ Antenna Expandability: Houses 8 internal 5G/LTE antennas and includes 2 external SMA-F antenna interfaces for connecting signal boosters.
⚡ SIM Convenience: Operates via a single Nano SIM card slot located at the base of the device.
Features
- Boost Your 5G Speed – Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps.
- Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
- AX1800 Dual-Band Wi-Fi 6 Speed – 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Plug & Play – Enjoy 5G network right after inserting a SIM card.
- Easy Mesh-Compatible – Co-work with Easy Mesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
- Gigabit WAN/LAN Port – The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.
SPECIFICATIONS
Specifications
- Product Code: ARCHER-NX200
- Description: TP Link Archer NX200 Wireless Dual Band Gigabit Router
Interface

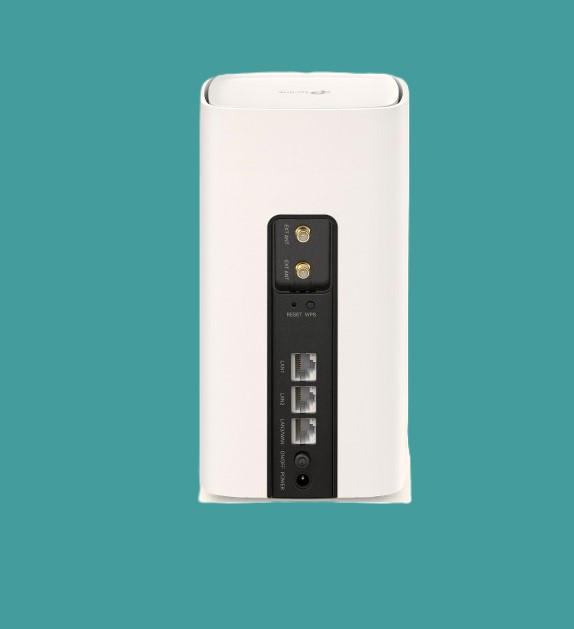

- 1 × 10/100/1000 Mbps LAN/WAN Port
- 2 × 10/100/1000 Mbps LAN Ports
- 1 × Nano SIM Card Slot
- 2 × External SMA-F Antenna Interface
- Button: WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
External Power Supply
- Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
- Output parameter 12VDC 2A
Antenna
- 8 × 5G/LTE Internal Antennas
- 2 × Wi-Fi Internal Antennas
WIRELESS FEATURES:
Wireless Standards
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
- Frequency: 2.4GHz and 5Ghz
- Signal Rate: 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
- WAN Failover: Yes
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Quality of Service: Prioritizes network traffic by device or application
- Security: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
- Management Features: TP-Link Cloud, Local Management, Remote Management
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: TP-Link, DynDns, NO-IP
- VPN: PPTP VPN, IPSec VPN, OpenVPN
- Access Control: Parental Control, Local Management Control
Firewall Security
- DoS, SPI Firewall, IP Address Filter/Domain Filter,
- IP and MAC Address Binding
- Protocols: IPv4, IPv6
Guest Network
- 2.4 GHz Guest Network x 1
- 5 GHz Guest Network x 1
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
WARRANTY:
The TP-Link Archer NX200 carries a standard 2-year limited replacement warranty in South Africa
DIMENSIONS:
Product Dimensions: 99mm × 99mm × 190mm
Shipping Dimensions: 80 mm × 160 mm × 140 mm
Shipping Weight: 1,3kg
WHATS IN THE BOX?
The Router: One TP-Link Archer NX200 5G AX1800 Wireless Dual-Band Gigabit Router unit.
Power Supply: One 1.5-metre DC Power Adapter to supply steady main power to the device.
Network Cable: One RJ45 Ethernet Cable (standard patch or flat type) for hardwiring a computer, console, or WAN source.
Documentation: One printed Quick Installation Guide outlining initial configuration steps along with statutory safety and warranty booklets.
