Description
⚡ Long-Distance Transmission:
⚡ Extends 4K/1080p media signals up to 120 metres over a single Cat6 cable.
⚡ Cost-Effective Infrastructure: Uses affordable, flexible ethernet cabling instead of expensive, rigid long-run HDMI cables.
⚡ Dual Simultaneous Outputs: Receiver features both HDMI and VGA ports to drive two displays at once.
⚡ Local Loop-Out Port: Transmitter includes a local HDMI out for easy real-time source monitoring.
⚡ Remote Control Pass-Back: Relays 38kHz infrared signals to manage your media player from the remote screen.
⚡ Advanced H.265 Compression: Delivers smooth, low-latency video playback while conserving cable bandwidth.
⚡ Bi-directional Audio: Supports independent dual-way stereo audio routing alongside the main video feed.
FEATURES
– Supports HDMI 1.4 and HDCP 1.4 protocols.
– Maximum resolution up to 3840×2160 at 30Hz (4K) and backward compatible with lower resolutions.
– Supports 1080p Full HD and 3D video.
– Supports H.265 video compression technology.
– IR (38 kHz) signal pass-back for remote control extension.
– RS232 pass-through support for serial control.
– Dual-way individual audio transmission.
– Receiver unit supports both HDMI and VGA outputs.
– Includes local HDMI output on the sender unit.
– Maximum transmission distance: up to 120 meters over Cat6 cable, 70 meters over Cat5e cable.
– Power supply: DC 5V/2A adapter.
– Compact dimensions: 134 x 93 x 24 mm.
– Operating temperature range: -5°C to +70°C, humidity 5% to 90%.
SPECIFICATIONS
– Product Code: ZA-EXTHDMI-60M

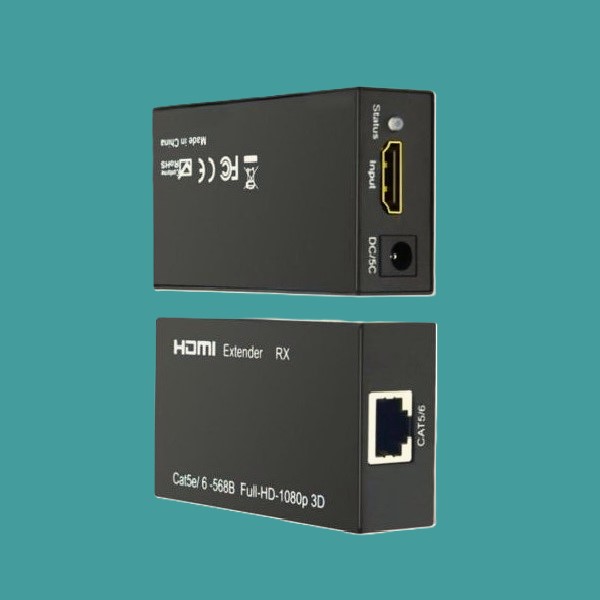

– Product Overview: UniQue HDMI Extender 60 MTR CAT5 CAT6
– HDMI connector type: HDMI-A with 100Ω impedance.
– Maximum pixel clock: 225MHz.
– Maximum data rate: 10.2 Gbps.
– Baud rate for RS232: 115200 bps (configurable).
– Audio formats supported: 44.1KHz to 192KHz stereo digital audio.
– RJ45 port for LAN cable connection (568B wiring standard).
– Includes reset function on receiver for signal adjustment based on cable length.
WARRANTY:
Standard Coverage: Includes a standard 1-year limited manufacturer warranty
DIMENSIONS:
Product Dimensions: 134 mm x 93 mm x 24 mm.
Shipping Dimensions: 200mm × 140 mm × 55mm.
Shipping Weight: 1,55
WHATS IN THE BOX?
1 × Transmitter Unit (TX): Links directly to your media source device.1 × Receiver Unit (RX): Connects to your remote display or monitor.
2 × 5V/2A DC Power Supplies: Wall adapters to power both hardware hubs.
1 × IR Blaster Cable (TX): Transmits your remote-control infrared signals.
1 × IR Receiver Cable (RX): Captures your remote-control infrared signals.
1 × User Manual: Quick-start guide detailing the network wiring standards.
