Description
NOTE: BIO-ETHANOL FUEL IS NOT INCLUDED AND MUST BE PURCHASED SEPARATELY. RETAILERS RECOMMEND USING 95%–97.5% BIO-ETHANOL FOR THE BEST PERFORMANCE.
SUITABLE SPACES:

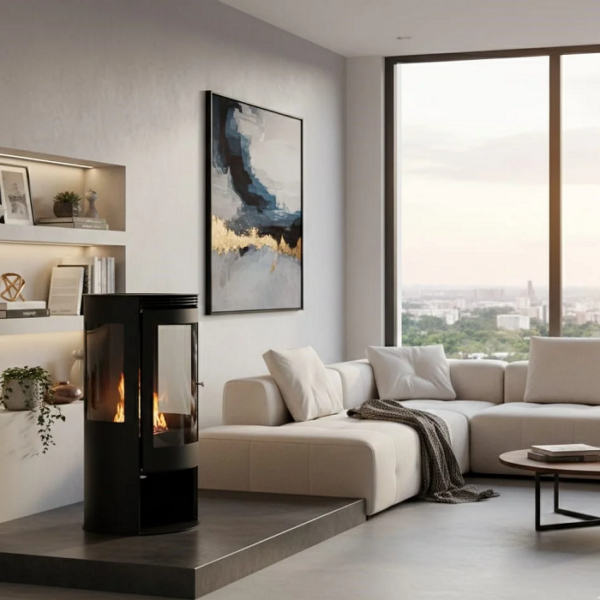

Ideal for apartments, offices, and lounges where traditional wood-burning stoves are not feasible.
OUTDOOR USE: While primarily for indoors, it can be used in sheltered outdoor areas:
Covered Patios & Terraces: Ideal for adding ambiance, provided the unit is sheltered from wind to prevent the flame from being extinguished.
FEATURES:
Burner Quality: Features a high-quality 304 stainless steel rectangle burner for longevity and safety.
Capacity & Burn Time: The burner holds 1.5 litres of bio-ethanol fuel, providing an approximate burn time of 2.5 hours per fill.

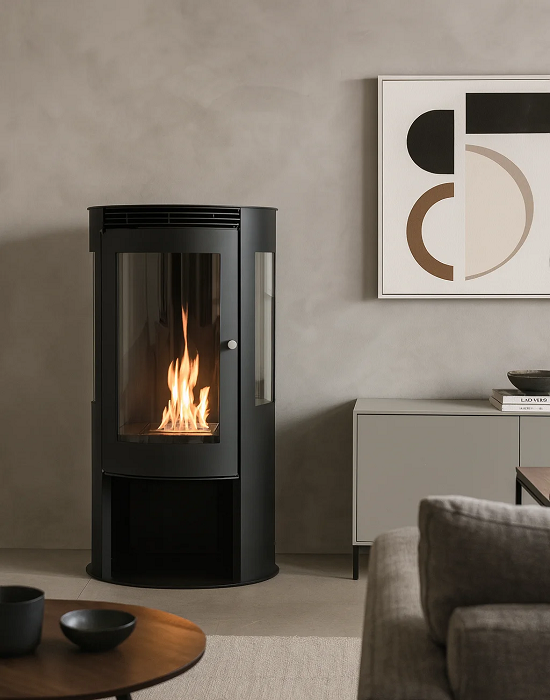

Aesthetic Design: Includes a curved tempered glass door that enhances safety while offering a sophisticated, modern look for any room.
Easy Maintenance: Produces no smoke, ash, or harmful emissions, making it a mess-free alternative to traditional wood-burning stoves.
SPECIFICATIONS:
BURNER & PERFORMANCE:
Burner Type: High-quality 304 stainless steel rectangular burner.
FUEL CAPACITY:
Burn Time: Approximately 2.5 hours per full tank.
Estimated Heat Output: While specific kW output for this exact model isn’t always listed, similar 1.5L burners typically produce between 2.0 kW and 3.0 kW of heat.
Heating Area: Suitable for warming small to medium-sized rooms, typically ranging from 20 to 40 square metres.
SAFETY & INSTALLATION REQUIREMENTS
Ventilation: No chimney, flue, or electricity is required. However, it must be used in a room with adequate fresh air flow to maintain oxygen levels.
Minimum Room Volume: It is recommended for rooms with a volume of at least 40 to 45m3 (approx. 16-20m2 with standard ceilings).
CLEARANCE DISTANCES:
Above: Minimum of 1 meter (1000mm) from the flame to a combustible ceiling.
Sides: At least 600mm to 800mm from combustible materials.
Front: Maintain a clear space of at least 1 meter.
Floor Surface: Should be placed on a solid, non-combustible surface such as tiles, concrete, or stone.
DIMENSIONS:
Product Dimensions: 490mm(L) x 400mm(W) x 1000mm(H).
Product Weight: 30Kg.
Shipping Dimensions: 500mm(L) x 450mm(W) x 1100mm(H).
Shipping Weight: 35Kg.
WHATS IN THE BOX?
Fireplace Body: The main freestanding unit made of mild steel with a high-heat black finish.
Curved Glass Door: A tempered glass front panel (usually pre-installed) that allows for a clear view of the flames.
1.5L Stainless Steel Burner: The core component where the bio-ethanol is poured and lit.
Flame Closer Tool: A specialized metal tool used to slide the burner plate shut and safely extinguish the fire.
Instruction Manual: Guidance on safe installation, fuel handling, and lighting procedures.
