Description
Technical Performance
Heat Output: Delivers a nominal performance of 9kW up to a maximum performance of 11kW.
Heating Capacity: Efficiently warms up an area of up to 252m³ (roughly (90-100m2) depending on ceiling heights).
Energy Efficiency: Operates at a high efficiency rating of 78%, resulting in lower wood consumption and cleaner burning.
Fuel Source: Exclusively designed for wood logs.
Construction & Styling
Firebox Integrity: Fabricated with a robust, fully-welded 5mm high-grade steel firebox.
Enhanced Thermal Mass: Lined with vermiculite bricks inside the chamber to retain heat and slowly radiate warmth into the room long after the fire dies down.
Visual Appeal: Outfitted with a sturdy steel door holding a large glass viewing window for clear fire visibility, coated in a sleek, metallic black high-heat resistant paint.
Appliance Components: Packaged as a freestanding fireplace complete with an integrated pedestal base, front handle, and a removable ash pan for easy cleaning.
Dimensions & Installation Specifications
Total Weight: Weighs a heavy 138 kg, ensuring excellent structural stability and heavy-gauge construction.
Chamber Measurements: Approximate overall physical dimensions sit at 490mm x 1228mm x 490mm.
Flue Pipe Requirements: Features a 150mm outlet size positioned at the top of the unit.
Shipping Dimensions: 600mm x 600mm x 1350mm
Shipping Weight: 138Kg

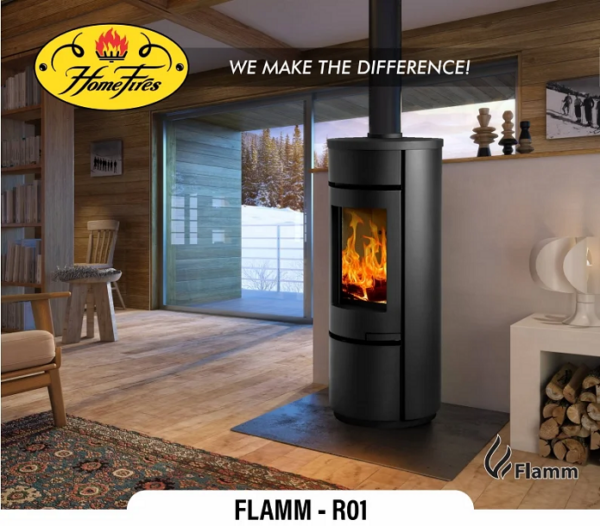

Flamm R01 Freestanding Fireplace (9-11kW) (Standard)
OPTIONAL EXTRAS:
150mm Pipe 1000mm Long Single Wall (Black S/S)
150mm Pipe 500mm Long Single Wall (Black S/S)
150mm Pipe 300mm Long Single Wall (Black S/S)
150mm Bend 45Deg Single Wall (Black S/S)
150mm Bend 90Deg Single Wall (Black S/S)
150mm T-Piece 90Deg Single Wall (Black S/S)
150mm 125-185-wall-bracket-insulated (Black S/S)
150mm Escutcheon Plate for Single Wall Pipe
150mm Escutcheon Plate 45Deg for Single Wall Pipe (Black S/S)
WHATS IN THE BOX:
Fireplace Core: The 5mm thick, fully welded steel closed-combustion firebox.
Pedestal Base: The integrated log-storage stand attached to the bottom of the unit.
Chamber Lining: A complete internal set of high-density vermiculite bricks already installed to increase thermal mass.
Front Door Assembly: The heavy steel door fitted with a large ceramic glass viewing window and an air-tight sealing gasket.
Door Handle: The heavy-duty front locking handle for opening and sealing the combustion chamber.
Ashpan: A removable internal drawer situated beneath the grate to collect and easily discard burnt ash.
