Description
KEY POINTS:
⚡ 4K Ultra HD: Supports video resolutions up to 3840 x 2160 at 30Hz.
⚡ SuperSpeed USB 3.0: Delivers 5 Gbps data transfer speeds for smooth, lag-free playback.
⚡ Audio Integration: Transmits both digital audio and video signals through a single DisplayPort cable.
⚡ Multi-Display Support: Allows you to connect up to 6 additional displays to one PC (requires one adapter per monitor).
SPECIFICATIONS
💻 VIDEO & AUDIO SPECIFICATIONS
Video Formats: Supports VGA, 2K (2048 x 1152), Full HD (1920 x 1080), and 4K UHD (3840 x 2160) video with a widescreen aspect ratio of 16:9.
Refresh Rates: Achieves 4K resolution at 30Hz and 1080p resolution at 60Hz.Color Depth: Delivers clear visuals supporting 16-bit or 32-bit color depths.
Audio Output: Integrates 5.1 channel surround sound directly into the DisplayPort signal.
Display Memory: Embedded with 128 MB of dedicated display memory.
💻 SYSTEM REQUIREMENTS & CAPABILITIES
OS Compatibility: Operates on Windows 7/8.1/10 (32/64-bit) and Mac OS X 10.6.8 or above.
Hardware Interface: Features a 9-pin USB Type-A male input and a 20-pin DisplayPort female output.
System Modes: Supports Suspend and Wake-up energy modes.
Multi-Monitor Settings: Allows for up to 6 simultaneous displays utilizing primary, extended, mirror, or screen rotation functionalities.
📐 PHYSICAL & ENVIRONMENTAL METRICS
Form Factor: Slim, portable plastic housing weighing exactly 60 grams.
Cable Length: Features an attached 21 cm (8.3 in.) USB cable.
Operating Limits: Functions between 0–40°C with non-condensing humidity tolerances up to 96%.
📐 CERTIFICATION STANDARDS: Meets CE, FCC, and RoHS compliance frameworks.
WARRANTY:

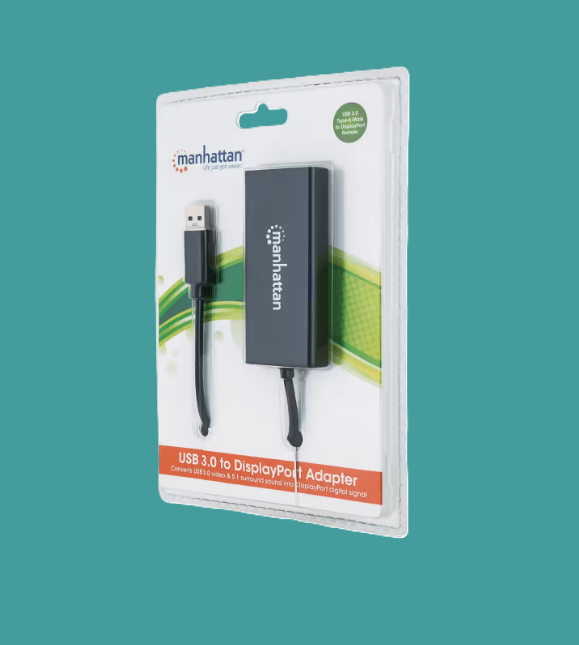

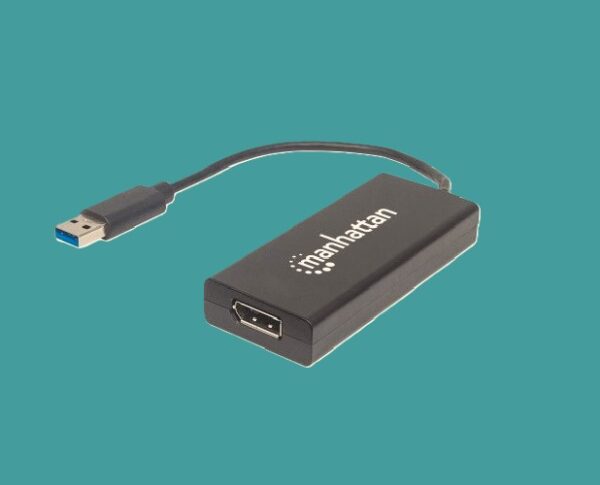

The Manhattan SuperSpeed USB 3.0 to DisplayPort Adapter (Model 152327) includes a Limited Lifetime Warranty in South Africa
DIMENSIONS:
Main Housing: Measures approximately 1.0 x 2.5 x 8.1 cm.
Cable Length: Features an integrated, attached USB cable measuring 21 cm.
Shipping Dimensions: 242mm x 275mm x 171mm
Shipping Weight: 0,144g
WHATS IN THE BOX?
SuperSpeed USB 3.0 to DisplayPort Adapter: The main hardware unit featuring the attached 21 cm integrated cable.
Driver CD: Includes the essential installation software, setup utilities, and digital user manuals.
Quick Instruction Guide: A printed, multi-language booklet outlining the step-by-step setup procedure.
