Description
SPECIFICATIONS
- Case Material: Plastic with metal
- CPU Model: AMD Ryzen 7 3700
- Series: Ryzen 3000 Series
- Codename: Matisse
- Cores: 8
- Threads: 16
- Integrated TPM: TPM 2.0 supported
- GPU Model: AMD Radeon™ Graphics
- Type: DDR4 SODIMM (Dual Channel)
- Speed: 3200MHz
- Capacity: 8GB (expandable up to 64GB)
- Installed Storage: 512GB SSD
- Max Storage Support: Up to 2TB SSD
- SSD Interface: NVMe & NGFF / SATA 3.0
- 2.5″ HDD Slot: 1 x supported
- TF Card Slot: Not supported
BIOS FEATURES
- Real-time clock support
- Timed power-on
- Automatic power-on after power failure
- UEFI diskless boot support
- LAN: 1 x Gigabit Ethernet (10/100/1000 Mbps)
- WiFi: Dual-band 2.4GHz & 5GHz (WiFi 5 / WiFi 6 support)
- WiFi Standards: IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: 4.2 / 5.2 supported
- SIM Support: Not supported
PORTS & CONNECTIVITY
- USB 2.0: 1 x Type-A (480Mbps)
- USB 3.2 Gen 2: 3 x Type-A (10Gbps)
- USB Type-C: 1 x (data transfer only, 5Gbps)
- HDMI: 1 x HDMI 2.0 (4K @ 60Hz)
- DisplayPort: 1 x DP 1.4 (4K @ 60Hz)
- Audio: 1 x 3.5mm combo jack (headphone/mic)
- RJ45 Ethernet: 1 x Gigabit port
DISPLAY SUPPORT
- Dual display output (HDMI + DP)
- Supports simultaneous two-screen display
- Maximum resolution: 4K @ 60Hz
POWER
- Power Input: DC 5.5mm / 2.1mm jack
- Power Button: 1 x
DIMENSIONS:
Unit Dimensions: 123.5 mm x 123.5 mm x 40 mm.
Weight: Approximately 520g
Shipping Dimensions: 160 mm x 160 mm x 100 mm.
Shipping Weight: 1.4kg
WARRANTY:
The Decibell AM02 standardly comes with a 1-year manufacturer warranty in South Africa.
WHATS IN THE BOX?

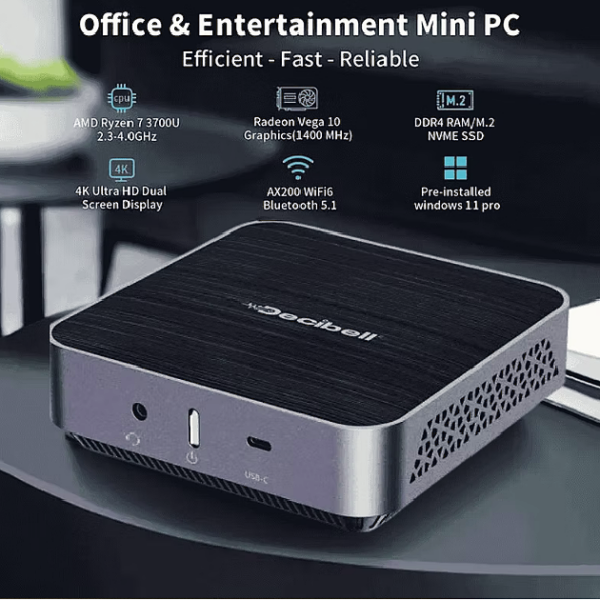

1x Decibell AM02 Mini Desktop PC: The main unit with the Ryzen 7 processor pre-installed.
1x Power Adapter & Cable: A dedicated DC power brick to power the unit.
1x HDMI Cable: A standard cable to connect the PC to your monitor or TV.
1x VESA Mount Bracket: Includes the necessary screws to mount the PC to the back of a compatible monitor or under a desk.
1x User Manual: A quick-start guide covering setup and port layout.
